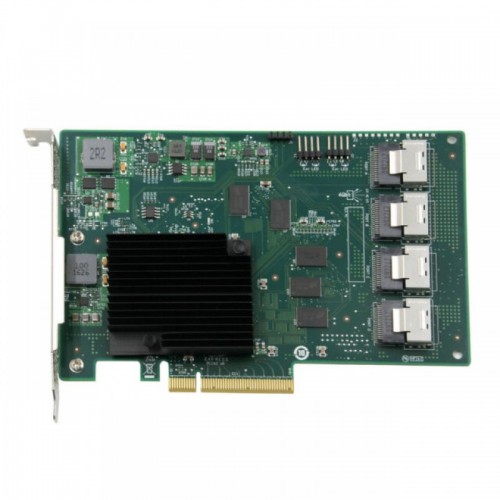

[9201-16i] Broadcom LSI 9201-16i LSI00244 PCIe 2.0 x8 SAS2116 16 Internal Ports 6Gb/s SAS+SATA Host Bus Adapter

Specifications

Product: SAS 9201-16i Host Bus Adapter
MPN: H5-25373-00
OPN: LSI00244
I/O Controller: LSISAS2116, Fusion MPT 2.0
Storage Connectivity ; Data Transfer Rates: 16 ports; 6Gb/s SAS 2.0 compliant
SAS Bandwidth: Half Duplex 600 MB/s per lane
Port Configurations
16 ea, x1 ports (individual drives)
4 ea, x4 wide ports
Host Bus: x16 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates:
Half Duplex
x8, PCIe, 4000 MB/s
Physical Dimensions: Full Height (4.2” x 6.6”)
Connectors: Four mini-SAS internal connectors (SFF8087)
Brackets: Full height
Cable Support: Passive Copper
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal): 16 W typical (Airflow min 200 LFM)
Device Support: 512 Non-RAID SAS/SATA devices
Environmental:
Operating:
0°C to 55°C
5 to 90% Non-condensing
Storage:
-45°C to 105°C
5 to 90% Non-condensing
MTBF: >2,000,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware. See http://www.lsi.com/channel/ChannelDownloads for details on versions
