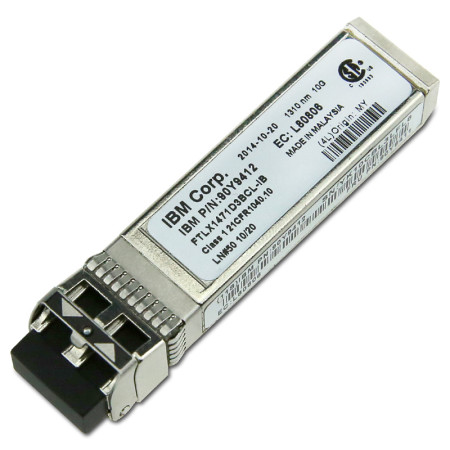

[90Y9412] IBM 90Y9412 90Y9410, 90Y9411 10Gbps SFP+ LR 1310nm 10km Transceiver

Features
Hot-pluggable SFP+ footprint
Electrical interface compliant to SFF-8431
Compliant with SFF-8472
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
1310nm DFB transmitter, PIN photo-detector
Distance up to 10km on single mode fiber
LC Duplex connector
Built-in digital diagnostic functions
Single 3.3V power supply
Metal enclosure, for lower EMI
ROHS compliant and lead-free

Specifications
Manufacturer: IBM
Part Numbers: 90Y9412, 90Y9410, 90Y9411
Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2~0.5dBm
Receiver Sensitivity: <-14.4dBm
Powerbudget: 6.2dB
Receiver Overload: 0.5dBm
Power Consumption: ≤1W
Extinction Ratio: >3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
