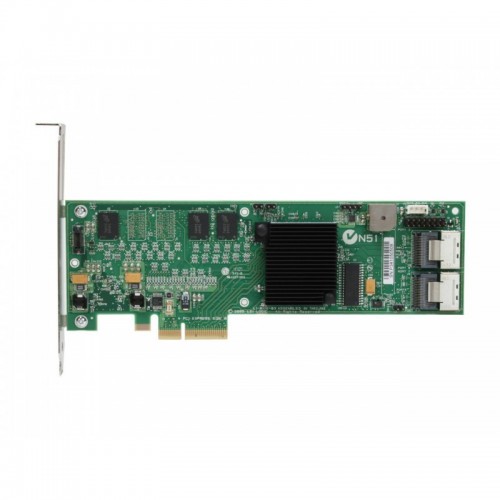

[8708ELP] Broadcom LSI 8708ELP LSI00141 PCI Express x4 LSISAS1078 8 Internal 3Gb/s SAS/SATA Ports RAID On Chip Adapter

Specifications
Part Number: MegaRAID SAS 8708ELP
Product: Eight-Port 3Gb/s PCI Express SAS/SATA RAID On Chip Adapter
Solution Provided: Eight-port SAS RAID solution for servers and workstations using up to 16 drives with the flexibility to use either SAS or 3Gb/s SATA drives, or a combination of both
Environment: Intel™ X86, EM64T and AMD Opteron™
Physical Dimensions: Low profile, extended half-length (7.71” X 2.536”)
Connectors: Two internal mini-SAS 4i (SAS SFF8087) connectors
Device Support: Up to 8 direct-connect or up to 16 with SAS expanders, 3Gb/s SAS and SATA drives
Host Bus Type: x4 lane PCI Express 1.0a compliant
Data Transfer Rates: 3Gb/s per port
I/O Processor/SAS Controller: LSI SAS1078 RAID on Chip (ROC)
Cache Memory: 667MHz DDR II SDRAM, 128MB
Battery Backup Unit: Optional intelligent Battery Backup Unit (iBBU) LSIiBBU05
RAID and Fault Tolerant Features
RAID levels 0, 1, 5, and 6
Online Capacity Expansion (OCE)
Configurable stripe size up to 1MB
Check Consistency for background data integrity
Hot Spare support
Automatic rebuild
Global and dedicated
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband)
SGPIO (sideband)
One 8-pin header to illuminate fault LED
RAID spans 10, 50 and 60
Online RAID Level Migration (RLM)
Fast initialization for quick array setup
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
Up to 32TB LUN support
Operating Temperature: Maximum ambient: 50°C (40°C w/iBBU)
Operating Voltage: +3.3V
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN50082, EN60950; FCC Class A, Class B; Ul1950; UL; CSA C22.2; VCCI; AS3548; BSMI; MIC
RAID Management
MegaRAID Management Suite
MegaRAID Storage Manager
MegaCLI (command-line interface)
WebBIOS
OS Support: Extensive support includes Microsoft® Windows® Server 2003/2000/XP, Linux® and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/support
