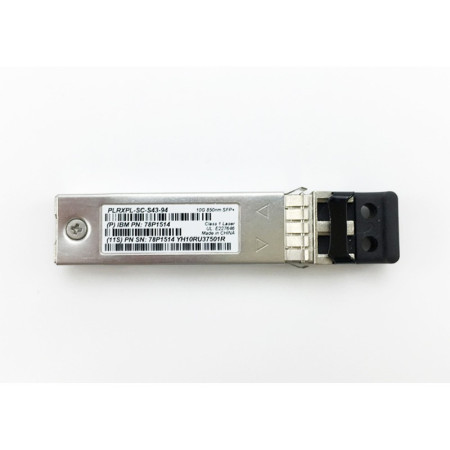

[78P1514] IBM PLRXPL-SC-S43-94 10G 850nm 0.3km SFP+ Transceiver Module

Key Features
Compliant to industrywide, 10 G link specifications
Uses a highly reliable, 850 nm oxide VCSEL
Lead-free and RoHS 6/6-compliant, with allowed exemptions
Commercial case operating temperature 0 – 70°C;
extended temperature operating up to 85°C
Single 3.3 V power supply
Low power consumption (typically 450 mW)
Bit error rate <1 x 10-12
Hot pluggable

Applications
High-speed local area networks
Switches and routers
Network interface cards
Computer cluster crossconnect systems
Custom high-bandwidth data pipes

Compliance
SFF 8431 Revision 3.2
SFF 8432 Revision 5.0
SFF 8472 Revision 10.3
IEEE 802.3 Clause 52 10GBASE-SR and 10GBASE-SW
10 G Fibre Channel
CDRH and IEC60825-1 Class 1 Laser Eye Safety
FCC Class B
ESD Class 2 per MIL-STD 883 Method 3015
UL 94, V0
Reliability tested per Telcordia GR-468
