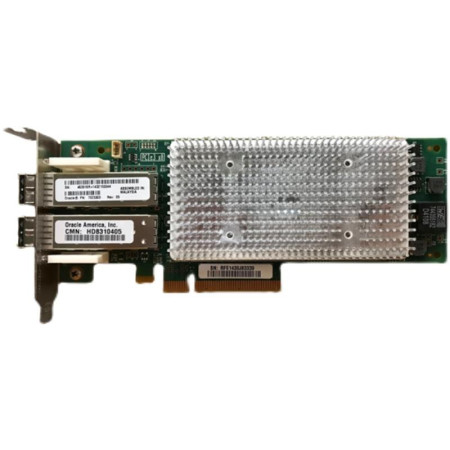

[7101674] Oracle Sun Storage 16 Gb Fibre Channel PCIe Universal Host Bus Adapter 7101674 7023303 QLogic QLE8362-ORL

Oracle Sun Storage 16 Gb Fibre Channel PCIe Universal Host Bus Adapter 7101674 7023303 QLogic QLE8362-ORL

Oracle's Sun Storage 16 Gb Fibre Channel (FC) PCIe Universal host bus adapter (HBA) (part number 7101674) is a standalone, PCIe low-profile universal HBA that uses Marvell, formerly QLogic, technology. The HBA is considered universal because it is a configurable board that enables you to change its operating protocol mode from a two-port 16 Gb FC HBA to a two-port 10 GbE Fibre Channel over Ethernet (FCoE) Converged Network Adapter. The universal HBA has four possible configurations:

10 GbE FCoE Copper — This configuration provides twin-ax copper cable connectivity and 10 GbE FCoE HBA functionality. No optical transceiver modules are installed in, nor provided with, this configuration of the universal HBA.
16 Gb FC SW (shortwave) Optical — This configuration requires installing 16 Gb FC shortwave optical transceiver modules in the SFP+ connector of the universal HBA, enabling 16 Gb Fibre Channel HBA functionality.
10 GbE FCoE SR (short-range) Optical — This configuration requires installing 10 GbE short-range optical transceiver modules in the SFP+ connectors of the universal HBA, enabling 10 GbE FCoE Converged Network Adapter functionality.
16 Gb FC LW (longwave) Optical —This configuration requires installing 16Gb FC long-range optical transceiver modules in the SFP+ connectors of the universal HBA, enabling 16 Gb FC HBA functionality.

Universal Host Bus Adapter Features and Specifications

Form factor: Standard low-profile form factor
Connector types: Small form-factor pluggable plus (SFP+) cages that can be connected with twin-ax cabling from supported switch manufacturers (See Switch Compatibility), or can have the following transceivers:
SFP+ 16 Gb FC shortwave (part number 7101676)
SFP+ 10 GbE FCoE short-range (part number 7101678)
SFP+ 16 Gb FC longwave (part number 7101680)
PCIe specification compliance: PCI Express Base Specification Revision 3.0
Lanes
PCI Express Gen 2 x8
PCI Express Gen 3 x4 (x8 Mechanical)
PCIe hot-plug and hot-swap functionality: Supported
Maximum power consumption: Approximately 24 Watts
Solaris Dynamic Reconfiguration: Supported
FCoE full offload in hardware: Supported
Boot support: Fibre Channel, Fibre Channel over Ethernet, and Ethernet for all operating systems (See Boot Support)
Test suite: Provided by Oracle VTS software
Receive side scaling (RSS): Supported
MSI-X: Supported
Fibre Channel support
Dual-port Fibre Channel with 16/8/4 auto negotiation
Topologies supported: FC-SW switched fabric (N_Port), FC-AL arbitrated loop (not supported at 16 Gb) (NL_ Port), and Point-to-point (N_Port)
Dual-port Fibre Channel over Ethernet
FC and FCoE compatibility
Fibre Channel Physical and Signaling (FC-PH, FC-PH2, FC-PH3)
Fibre Channel Generic Services (FC-GS-3)
Fibre Channel Framing and Signaling (FC-FS)
Fibre Channel Physical Interface (FC-Pl)
Fibre Channel Tape and Medium Changers (FC-Tape)
Fibre Channel Protocol for SCSI (FCP-3-SCSI)
Fibre Channel Switch Fabric (FC-SW-4)
Fibre Channel Protocol for SCSI Support (FC-FCP, FC-FCP2)
FMA support
FC and FCoE boot code for all supported operating systems
Note - Link Aggregation Control Protocol (LACP) cannot be used on the same port as FCoE or iSCSI.

Ethernet and NIC support
Standard Ethernet and Enhanced Ethernet:
IEEE 802.1Q VLAN
IEEE 802.1p and 802.1D
IEEE 802.3x
IEEE 802.1Qbb
IEEE 802.1Qaz
DCBX CEE Rev 1.01
Controller hardware support:
Jumbo frames support for frame sizes of at least 9 KB
Hardware TCP/UDP checksum generation
Hardware IPv4/IPv6 checksum offload
Hardware large segmentation offload
Hardware Header and Data Split
Full-duplex operation is supported
Up to 128 MAC addresses
Unicast and multicast address filtering
VMware NetQueue
Packet filtering based on MAC address or VLAN tag
Microsoft receive side scaling (RSS)
NIC teaming
PCI hot-plug functionality
Pre-boot eXecution environment (PXE) boot
iSCSI boot
