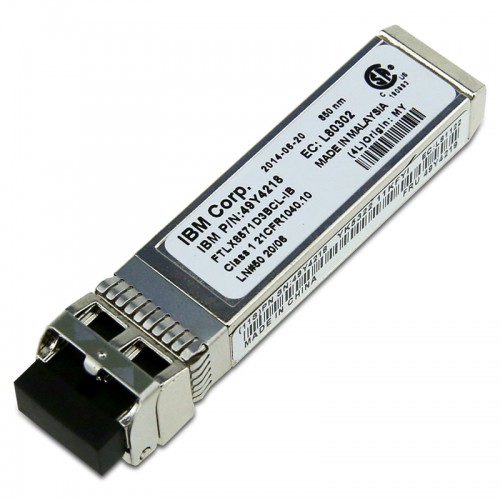

[49Y4218] IBM 49Y4218 49Y4219 10Gb SFP+ SR Optical Transceiver

Specifications

IBM Part Number: 49Y4218
Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 850nm
Max Cable Distance: 300m@OM3/400m@OM4
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.3~-1dBm
Receiver Sensitivity: < -11.1dBm
Powerbudget: 3.8dB
Receiver Overload: 0.5dBm
Typical Power Consumption: ≤0.6W
Extinction Ratio: >3dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
