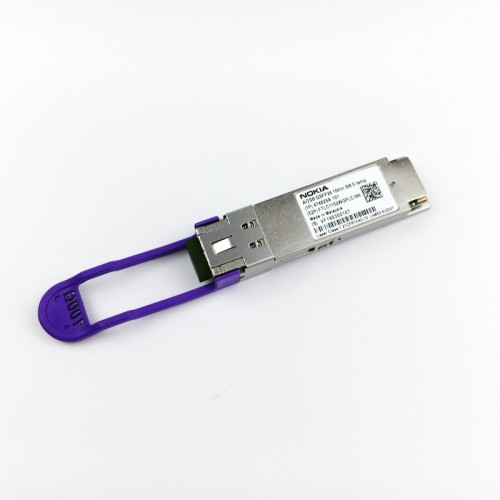

[474829A-101] Nokia 100G QSFP28 10km SM E-temp Transceiver Module FTLC1152WGPLC-NN

Features
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <4.5W
RoHS compliant
Extended case temperature range of -20°C to 85°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF) [with KR4 FEC]
4x25Gb/s CDWM transmitter
4x25G retimed electrical interface
Duplex LC receptacles
I2C management interface

Applications
24.33 Gb/s CPRI Wireless
25.78 Gb/s Ethernet/eCPRI Wireless
100G 4WDM applications with FEC
100G CWDM4 applications with FEC

Specifications
Brand: Nokia
Part Number: 474829A.101
MPN: FTLC1152WGPLC-NN
Form Factor: QSFP28
Connector: LC
Data Rate (max): 103.1 Gb/s
Wavelength: 1310nm Band
Distance: 10 km
Protocol: 100G Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C): -20
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: 4x CWDM DFB Laser
Receiver: PIN
Voltage Supply: 3.3
