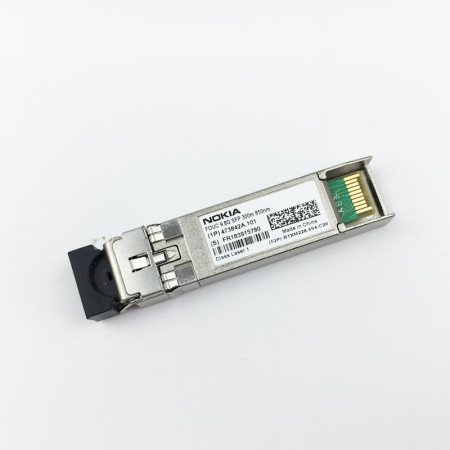

[473842A-101] Nokia 9.8G 300m 850nm SFP+Transceiver Module RTXM228-554-C20

Features
Genuine Nokia 473842A.101
Compliant to SFP+ MSA
Fully RoHS Compliant
Almetahousing for superior EMI performance
IPF compliant mechanics SFF-8432
Operating data rate 8.5-10.5Gb/s
850nm VCSEL Laser
High sensitivity PIN photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption <1.0W
-40 to 85 operating wide temperature range ℃ ℃
Single +3.3V±5% power supply
DigitaMonitoring SFF-8472 Rev 11 compliant
Reatime monitoring of：
Transmitted opticapower
Received opticapower
Laser bias current
Temperature
Supply voltage
Applications
10GBASE-SR
8.5/10.5 Gb/s Fiber Channel
Wireless and cellular base station

Compliance
FC-PI-4 Rev 7.00
10GFC Rev 4.0
IEEE 802.3ae 10GBASE-SR
SFF-8431 Rev 4
SFF-8472 Rev 11

Specifications
Part Number: 473842A.101
MPN: RTXM228-554-C20
Form Factor: SFP+
Data Rate (max): 8.5 ~ 10.5Gb/s
Connector: Dual LC
Reach (km): 300m
Transmitter: 850nm VCSEL
Receiver: PIN
Wavelength (nm): 850nm
OpticaPower: -7.3 ~ -1.0dBm
Receive Sensitivity: <-11.1dBm
DDM: Yes
Operating Temperature: -40~85℃
