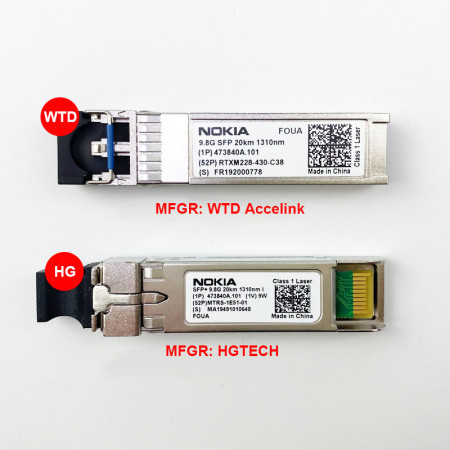

[473840A-101] Nokia 9.8G 20km 1310nm SFP+ Transceiver Module RTXM228-430-C38

Features
Genuine Nokia 473840A.101
Up to 20km transmission distance over SMF
Support data rate up to 10.3125Gbps
1310nm DFB and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnosticmonitoring
SFP MSA package with duplex LC connector
Hot pluggable
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 1W
Operating case temperature: 0~+70°C

Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
LTE optical repeater application

Compliance
Compliant with IEEE 802.3ae-2002
Compliant with MSA SFF-8472
Compliant with MSA SFF-8431
Compliant with MSA SFF-8432

Specifications
Brand: Nokia
Part Number: 473840A.101
MPN: RTXM228-430-C38, MTRS-1E51-01
Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 1310nm
Max Cable Distance: 20km
Connector: Duplex LC
Cable Type: SMF
Transmitter Type: 1310nm DFB
Receiver Type: PIN
DDM/DOM: Supported
Receiver Sensitivity: <-14.4dBm
Power Consumption: ≤1W
Operating Temperature Range: 0 to 70°C (32 to 158°F)
