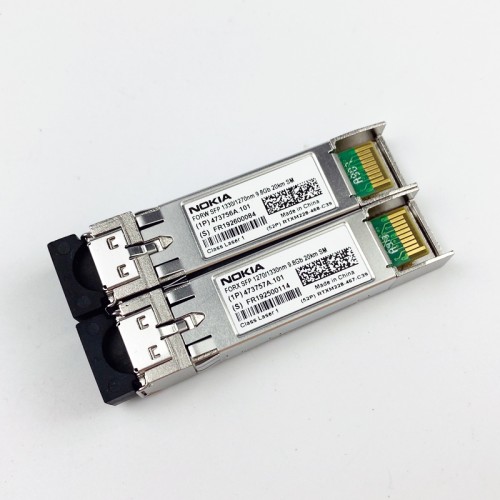

[473756A-101] Nokia 9.8G TX-1330nm RX-1270nm SM 20km SFP+ RTXM228-468-C39

Features
Genuine Nokia 473756A.101
Compliant to SFP+ MSA
Fully RoHS compliant
Operating data rate 2.5 to 10.3Gb/s
Transmission distance up to 20km
1330nm DFB laser
LC single connector
Hot pluggable 20pin connector
Wide temperature range
Low power consumption <1W
Single +3.3V±5% power supply
Digital monitoring SFF-8472 Rev 10 compliant

Applications
10GBASE-LR/LW
10G Ethernet
OBSAI rates 3.072 Gb/s, 6.144Gb/s
CPRI rates 2.4576 Gb/s, 4.9152Gb/s, 6.144Gb/s,9.8304 Gb/s

Standards
IEEE 802.3ae 10GBASE-LR
SFF-8431 Rev 4
SFF-8472 Rev 10

Specifications
Brand: Nokia
Part Number: 473756A.101
MPN: RTXM228-468-C39, MBS-7C31-31-01
Form Type: SFP+
Speed: 2.5 ~ 10.3 Gb/s
Connector: Simplex LC
Media: SMF
Wavelength: Tx-1330nm, Rx-1270nm
Reach: 20km
Laser: 1330nm DFB
Optical Power: -2 ~ +5 dBm
Detector: 1270nm PIN
Sensitivity: <-14.4 dBm
DDM: Supported
Operating Temperature: -40~85℃
