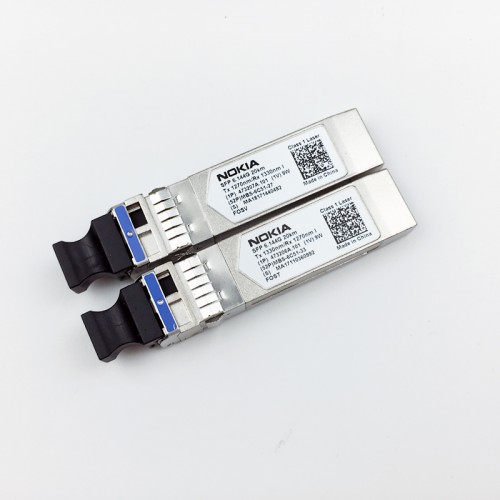

[473207A-101] Nokia 6.144G TX-1270nm RX-1330nm 20km SFP+ MBS-6C51-27

Features
Genuine Nokia 473207A.101
Up to 20km transmission on SMF
Support Multi Rate 1.2288-6.25Gbps
1270 DFB transmitter, PIN photo-detector
Single LC connector for bi-directional application
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
Very low EMI and excellent ESD protection
Hot pluggable
+3.3V power supply
Power consumption less than 1W
ROHS compliant
Operating case temperature:-40~+85°C

Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
Wireless CPRI

Compliance
Compliant with IEEE 802.3
Compliant with SFF-8431 & SFF-8432 & SFF 8472
Compliant with FC-PI-4

Specifications
Part Number: 473207A.101
MPN: MBS-6C51-27
Form Factor: SFP+
Data Rate (max): 6.144G
Connector: Single LC
Transmitter: 1270nm DFB
Receiver: PIN
Wavelength (nm): TX-1270nm RX-1330nm
Optical Power: -8.2 ~ 0.5dBm
Receive Sensitivity: <-14.4dBm
Reach (km): 20
Operating Temperature: -40~85℃
