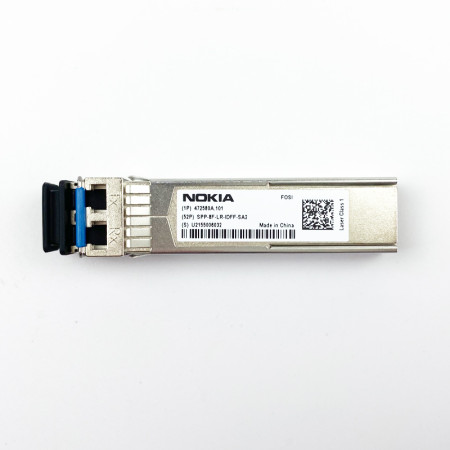

[472580A-101] Nokia 6G 15km 1310nm SFP+ Transceiver Module RTXM228-618 SPP-8F-LR-IDFF-SA2

Features
Genuine Nokia 472580A.101
Up to 15KM transmission distance
Support Multi Rate 3.072-6.144Gbps
1310nm DFB and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic Monitoring
SFP+ MSA package with duplex LC connector
Hot pluggable
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 1.0W
Operating case temperature: -40~+85°C

Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
LTE optical repeater application

Compliance
Compliant with IEEE 802.3ae-2002
Compliant with MSA SFF-8472
Compliant with MSA SFF-8431

Specifications

Part Number: 472580A.101
MPN: RTXM228-618, SPP-8F-LR-IDFF-SA2
Form Factor: SFP+
Data Rate (max): 6G
Connector: Dual LC
Wavelength: 1310nm
Distance: 15km
Transmitter: 1310nm DFB
Receiver: PIN
Rx Sensitivity (dBm): <-14.4
Diagnostics: Digital
Voltage Supply: 3.3
Power Consumption: <1w
Operating Temperature: -40°~ 85°C
