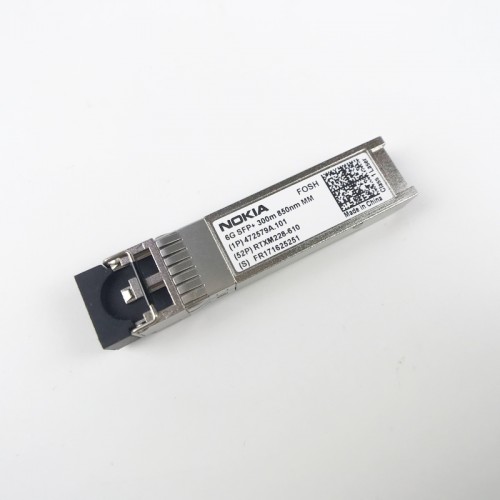

[472579A-101] Nokia 6G 300m 850nm MM SFP+ Transciever Module RTXM228-610

Features
Genuine Nokia 472579A.101
Compliant to SFP+ MSA
Fully RoHS Compliant
Up to 300m with 50µm OM3 MMF
850nm VCSEL Laser
LC duplex connector
Hot pluggable 20-pin connector
Low power consumption<1.0W
-40℃ to 85℃ operating wide temperature range
Single +3.3V±5% power supply
Digital Monitoring SFF-8472 Rev 10 compliant
Real time monitoring of：
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage

Applications
Wireless and cellular base station system interconnect:
OBSAI rates 6.144Gb/s, 3.072 Gb/s
CPRI rates 4.9152 Gb/s, 2.4576 Gb/s
2/4GFC Data Storage

Compliance
SFF-8432
SFF-8431
SFF-8472

Specifications
Part Number: 472579A.101
MPN: RTXM228-610, JSH-62S1DA1-001
Form Factor: SFP+
Data Rate (max): 6.1445Gb/s
Connector: DuaLC
Wavelength: 850nm
Distance: 300m
Transmitter: 850nm VCSEL
Receiver: PIN
Optical Power (dBm): -8.0 ~ -1.0
Rx Sensitivity (dBm): <-11.5
Diagnostics: Digital
Operating Temperature: -40°~ 85°C
