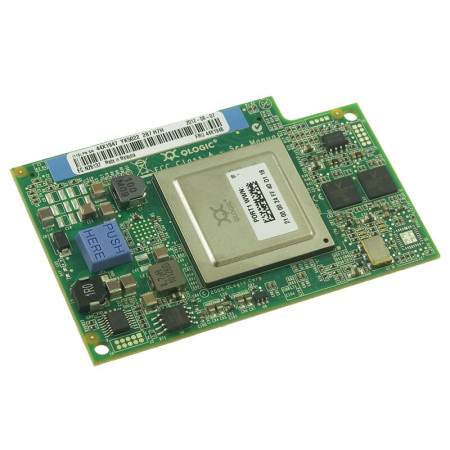

[44X1945] IBM 44X1945 44X1947, 44X1948 Dual-Port 8Gbps Fibre Channel Expansion Card by QLogic for BladeCenter

IBM 44X1945 44X1947, 44X1948 Dual-Port 8Gbps Fibre Channel Expansion Card by QLogic for BladeCenter

Features

CIOv form factor
QLogic 2532 8Gb ASIC
PCI Express 2.0 host interface
Support for two full-duplex Fibre Channel ports at 8 Gbps maximum per channel
Support for Fibre Channel Protocol Small Computer System Interface (FCP-SCSI) and Fibre Channel
Internet Protocol (FC-IP)
Support for Fibre Channel service (class 3)
Support for switched fabric, point-to-point, and Fibre Channel Arbitrated Loop (FC-AL) connections
Support for NPIV when installed in the JS23/JS43
Configuration and boot support in BIOS and UEFI
Operating environment

Temperature: 10°C to 35°C (50°F to 95°F)
Relative humidity: 8% to 80% non-condensing
Supported operating systems

IBM AIX 5L for POWER Version 5.3
IBM AIX Version 6.1
IBM Virtual I/O Server
IBM i operating system 6.1
Microsoft Windows Essential Business Server 2008 Premium Edition
Microsoft Windows Essential Business Server 2008 Standard Edition
Microsoft Windows Server 2003, Web Edition
Microsoft Windows Server 2003/2003 R2, Enterprise Edition
Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
Microsoft Windows Server 2003/2003 R2, Standard Edition
Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Datacenter x86 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
Microsoft Windows Server 2008, Standard x64 Edition
Microsoft Windows Server 2008, Standard x86 Edition
Microsoft Windows Server 2008, Web x64 Edition
Microsoft Windows Server 2008, Web x86 Edition
Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
Microsoft Windows Small Business Server 2008 Premium Edition
Microsoft Windows Small Business Server 2008 Standard Edition
Red Hat Enterprise Linux 4 AS for AMD64/EM64T
Red Hat Enterprise Linux 4 AS for x86
Red Hat Enterprise Linux 4 ES for AMD64/EM64T
Red Hat Enterprise Linux 4 ES for x86
Red Hat Enterprise Linux 4 WS/HPC for AMD64/EM64T
Red Hat Enterprise Linux 4 WS/HPC for x86
Red Hat Enterprise Linux 4 for IBM POWER
Red Hat Enterprise Linux 5 Server Edition
Red Hat Enterprise Linux 5 Server Edition with Xen
Red Hat Enterprise Linux 5 Server with Xen x64 Edition
Red Hat Enterprise Linux 5 Server x64 Edition
Red Hat Enterprise Linux 5 for IBM POWER
SUSE LINUX Enterprise Server 10 for AMD64/EM64T
SUSE LINUX Enterprise Server 10 for IBM POWER
SUSE LINUX Enterprise Server 10 for x86
SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 10 with Xen for x86
SUSE LINUX Enterprise Server 11 for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for IBM POWER
SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
VMware ESX 3.5
VMware ESX 4.0
VMware ESXi 3.5
VMware ESXi 4.0
