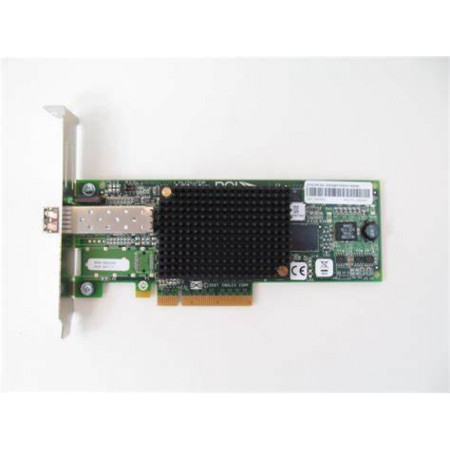

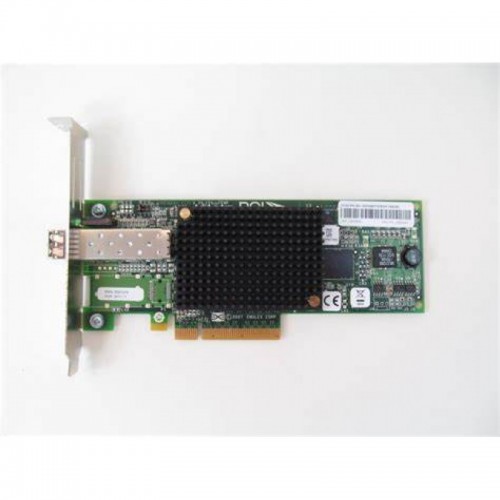

[42D0485] IBM 42D0485 42D0491, 42D0486 Emulex 8Gb FC Single-port HBA for System x

Features

Based on the Emulex LPe12000 (single port) and LPe12002 (dual port) adapters
Standard PCI Express card with low profile form factor
One or two independent Fibre Channel ports with optical modules included
PCI Express 2.0 host interface
Support for both standard and low-profile PCI Express slots
Auto-negotiation between 2 Gb, 4 Gb, or 8 Gb link attachments
Processes over 200K I/O operations per second (IOPS), per port
Support for up to 1600 MB per second maximum at full-duplex, per port
Fibre Channel specifications

Full support for all Fibre Channel topologies, including point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)
Support for F_Port and FL_Port login
Full support for Fibre Channel services class 2 and 3
Up to 4096 FC port logins and up to 4096 concurrent exchanges per FC port
