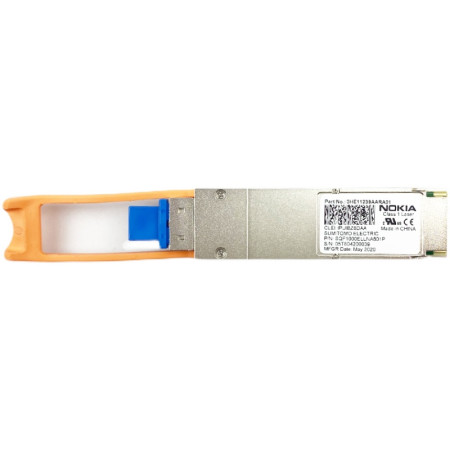

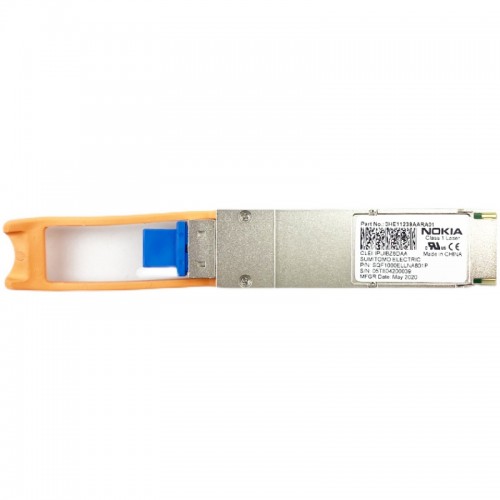

[3HE11239AARA01] Nokia 100GBASE-ER4 Lite 40km SMF QSFP28 Transceiver Module

Features
Genuine Nokia 3HE11239AARA01
BOX Packaging, EML+APD, Built-in Dual CDR
≤4.5W Low Power Consumption
Fully Compatible With 200+ Vendors
For Data Center and Telecom Applications
Hot Pluggable QSFP28 MSA Compliant

Applications
100GBASE Ethernet
Data Center

Specifications
Brand: Nokia
Part Number: 3HE11239AARA01
MPN: SQF1000ELLNA801P
Form Factor: QSFP28
Max Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 1310nm
Max Cable Distance : 40km
Connector: Duplex LC
Cable Type: SMF
Transmitter Type: 4x EML
Receiver Type: APD
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -2.9~4.5dBm
Receiver Sensitivity: <-20.9dBm
Powerbudget: 18dB
Receiver Overload: -4.9dBm
Typical Power Consumption: ≤4.5W
Extinction Ratio: ＞4dB
Modulation Format: NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Host FEC: Supported
Packaging Technology: BOX Packaging
EMC (Electromagnetic Compatibility): Supported
Protocols: QSFP28 MSA Compliant
