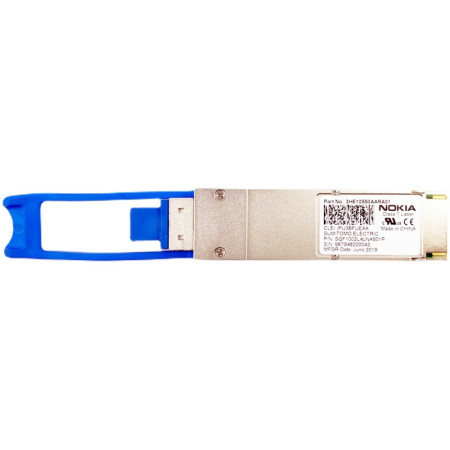

[3HE10550AARA01] Nokia 100GBASE-LR4 QSFP28 ROHS6/6 0/70C 10km Transceiver

Features
Genuine Nokia 3HE10550AARA01
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
3.5W maximum power dissipation
RoHS compliant
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x25Gb/s 1310nm DFB-based transmitter
4x25G electrical interface
Full digital diagnostics functions
Integrated 4-channel WDM mux/demux for duplex LC operation
Duplex LC receptacles

Applications
100GBASE-LR4 100G Ethernet
OTN OTU4 4I1-9D1F

Specifications
Part Number: 3HE10550AARA01
MPN: FTLC1154RDPL-A5, SQF1002L4LNA801P
Form Factor: QSFP28
Data Rate (max): 112 Gb/s
Connector: Dual LC
Wavelength: 1295.56, 1300.05, 1304.58, 1309.14 nm
Distance: 10 km
Transmitter: 4x LWDM DFB Laser
Receiver: PIN
Diagnostics: Digital
Protocol: OTN OTU4 Compliant 100G Ethernet Compliant
Voltage Supply: 3.3
Temperature: Standard 0°~70°C
