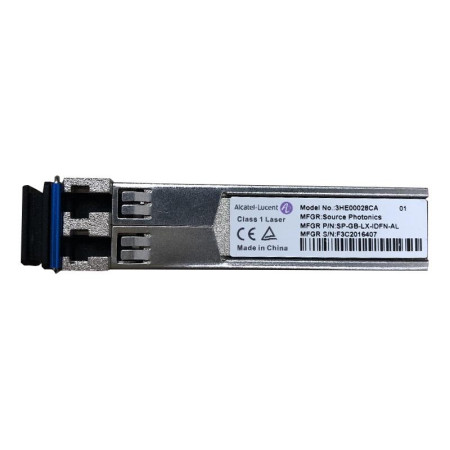

[3HE00028CA] Alcatel-Lucent SFP-GIGE-LX-LC ROHS 6/6 DDM Optical Transceiver

Specifications

Manufacturer: Alcatel-Lucent
Part Number: 3HE00028CA
Form Factor: SFP
Data Rate: 1.25Gb/s
Wavelength: 1310 nm
Fiber Type: SMF
Max Distance: 10 km
Optical Components: FP/PIN
Transmitter Power: -9 ~ -3 dBm
Extinction ratio: > 9 dB
Receiver Sensitivity: < -22 dBm
Receiver Overload: > 0 dBm
Connector: LC Duplex
Digital Diagnostic Monitoring: Yes
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Weight: 0.025 kg
Application: Gigabit Fibre Channel, Gigabit Ethernet
Compliance
IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
