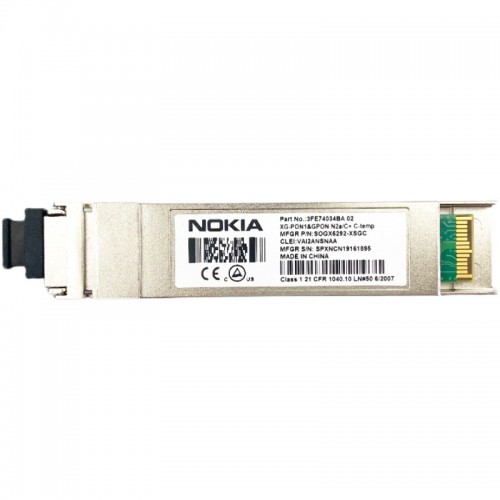

[3FE74034BAAA] Nokia XG-PON1 & GPON N2a/C+ C-Temp XFP SOGX6292-XSGC

Features

Support ITU-T G.987.2 XGPON OLT side application
Single fiber bi-directional data links with asymmetric 9.953Gbps downstream and 2.488Gbps upstream
Integrated with micro-optics WDM filter for dual wavelength Tx/Rx operation at 1577nm/1270nm
1577nm continuous-mode transmitter with EML laser
1270nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Digital receiving signal strength indication (RSSI)
XFP MSA package with SC receptacle optical interface
+3.3V power supplies
Operating case temperature: 0~70°C
RoHS With Exemption
Specifications

Brand: Nokia
Part Number: 3FE74034BAAA
MPN: SOGX6292-XSGC, LTH5306-PCA+
Data rate: 10Gbs
Distance: 20km
Wavelength: 1577nmT/1270nmR
Transmitter: 9.9 Gb/s 1577nm EML
Receiver: Dual Rate 9.9/2.5 Gb/s APD
DDM: Yes
Connector: SC/UPC
Operating Temperature: 0°C to 70°C
Voltage Supply: 3.3V
Standards

Complies with INF-8077i
Complies with ITU-T G.987.2
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
