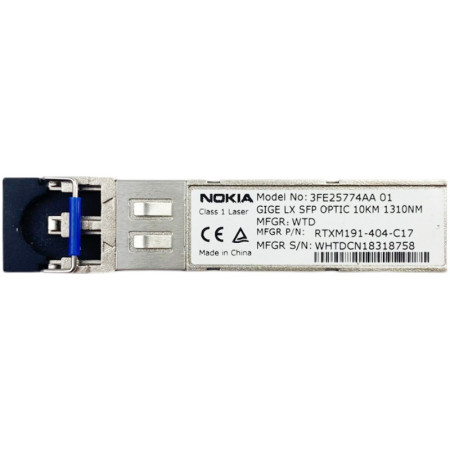

[3FE25774AA] Nokia GIGE LX 10km 1310nm SFP OPTIC RTXM191-404-C17

Features

Up to 1.25Gbps data rate
Duplex LC receptacle optical interface compliant
Single +3.3V power supply
DDM function implemented
External calibration
Hot-pluggable
Receiver Loss of Signal Output
AC coupling of PECL signals
Serial ID module on MOD(0-2)
International Class 1 laser safety certified
Transmitter disable input
Operating temperature range: -10ºC to 70ºC
RoHS Compliance
Specifications

Brand: Nokia
Part Number: 3FE25774AA
MPN: RTXM191-404-C17
Form Factor: SFP
Max Data Rate: 1.25Gb/s
Wavelength: 1310nm
Max Cable Distance : 10km
Connector: Duplex LC
Cable Type: SMF
Transmitter Type: 1310nm FP
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: -10 to 70°C
TX Power: -9 ~ -3dBm
Receiver Sensitivity: <-20dBm
Protocols: 1000BASE-LX
