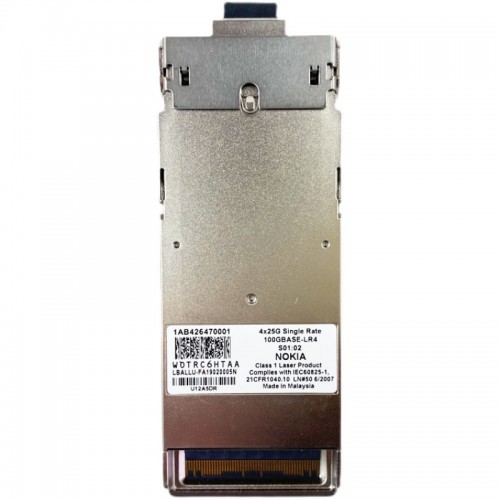

[1AB426470001] Nokia 4*25G Single Rate CFP2 100G BASE-LR4 10km Optical Transceiver

Specifications

Part Number: 1AB426470001
Form Factor: CFP2
Data Rate: 103.125 to 112.2 Gbps
Connectors: Duplex LC
Media Type: Single-Mode Fiber (SMF)
Minimum Optical Budget: 6.3 dB
Maximum Distance: 10km
Supported Applications: 100G Ethernet (103.125Gbps), OTU4 (112Gbps)
DDM/DOM: Supported
Tx Wavelength Bandwidth: 4 WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)
Rx Wavelength Bandwidth: 4WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)
Minimum Transmitting Power: Each Lane -4.3 dBm
Maximum Transmitting Power: Each Lane 4.5 dBm
Receiver Sensitivity: Each Lane -10.6 dBm
Receiver Overload: Each Lane 4.5 dBm
Transmitter Type: EML Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Temperature Range: Standard 0°-70°C
Compliance: 100GBASE-LR4, CE, CFP2 MSA,, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3ba, RoHS, SFF-8431
