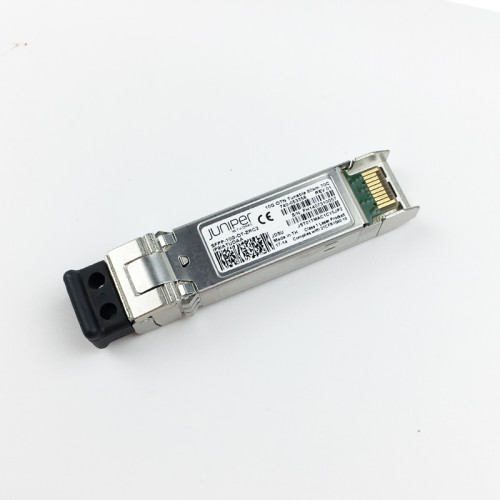

[SFPP-10G-DT-ZRC2] Juniper OTN tunable SFP+ 80km over Single Mode Fiber Transceiver, 740-053356

Product Name: 10G-ZR Eth OTN tunable SFP Plus 1.5W 70 degrees C
Part Number: 740-053356
Speed: 10 Gigabit Ethernet
Transceiver Type: SFP+
Product Type: Optical Transceiver
Connector: Duplex LC
Monitoring Available: Yes
Digital Optical Monitoring: Yes
Standard: 10GBASE-ZR
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): Multivendor agreement
Digital Diagnostic Monitoring
Tx power
Rx power
Bias current
Case temperature
Power supply voltage
NEBs (Yes or No): Yes
Transmitter wavelengths (range): 1528.38 nm through 1568.77 nm (tunable)
Transmitter output power, each lane (minimum): -1.0 dBm
Transmitter output power, each lane (maximum): +3.0 dBm
Receiver input power, each lane (minimum): –24.0 dBm (9.95, 10.312, and 10.709 Gbps, BER <1X10-12, no FEC) –25.0 dBm (11.049 and 11.095 Gbps, BER <1X10-6, pre-FEC)
Receiver input power, each lane (maximum): -7.0 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Distance: 80 km
Maximum Power consumption (W): 1.5 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
