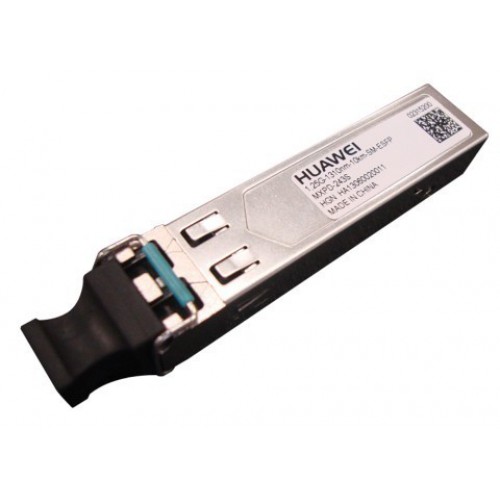

[S-SFP-GE-LH40-SM1310] Huawei Optical Transceiver, eSFP, GE, Single-mode Module (1,310 nm, 40 km, LC)[02317346]
Basic Information
Module name: S-SFP-GE-LH40-SM1310
Part Number: 02317346
Model: S-SFP-GE-LH40-SM1310
Form factor: eSFP
Application standard: 1000BASE-EX (non-standard)
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 1 Gbit/s
Target transmission distance [km]: Single-mode fiber: 40 km
Transmitter Optical Characteristics
Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0 dBm
Minimum Tx optical power [dBm]: -5.0 dBm
Minimum extinction ratio [dB]: 9 dB
Receiver Optical Characteristics
Rx sensitivity [dBm]: -23 dBm
Overload power [dBm]: -3.0 dBm
