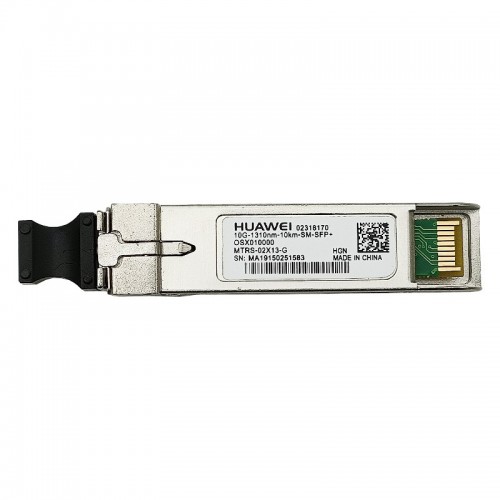

[02318170] Huawei OSX010000 Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Basic Information

Module name: OSX010000
Part Number: 02318170
Model: OSX010000
Form factor: SFP+
Application standard: 10GBASE-LR
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -8.2 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -12.6 dBm
Overload power [dBm]: 0.5 dBm
