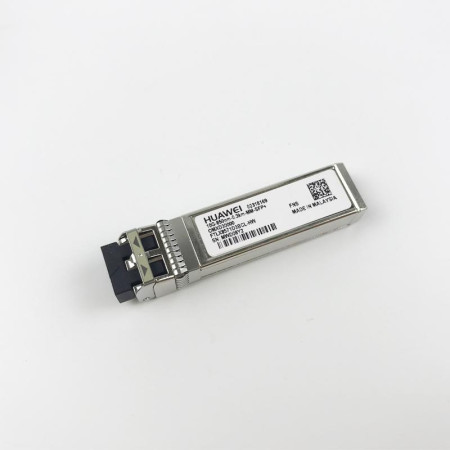

[02318169] Huawei OMXD30000 Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

Basic Information

Module name: OMXD30000
Part Number: 02318169
Model: OMXD30000
Form factor: SFP+
Application standard/Type: 10GBASE-SR
Connector type: LC
Optical fiber type: MMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10Gbit/s
Target transmission distance [km]:
Multimode fiber (with diameter of 62.5 μm): 26 m
Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m
Multimode fiber (with diameter of 50 μm): 66 m
Multimode fiber (OM2) (with diameter of 50 μm): 82 m
Multimode fiber (OM3) (with diameter of 50 μm): 300 m
Multimode fiber (OM4) (with diameter of 50 μm): 400 m
Modal bandwidth [MHz*km]:
Multimode fiber: 160 MHz*km
Multimode fiber (OM1): 200 MHz*km
Multimode fiber: 400 MHz*km
Multimode fiber (OM2): 500 MHz*km
Multimode fiber (OM3): 2000 MHz*km
Multimode fiber (OM4): 4700 MHz*km
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power (AVG) [dBm]: -1.0 dBm
Minimum Tx optical power (AVG) [dBm]: -7.3 dBm
Minimum extinction ratio [dBm]: 3.0 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -11.1 dBm
Overload power (AVG) [dBm]: -1.0 dBm
