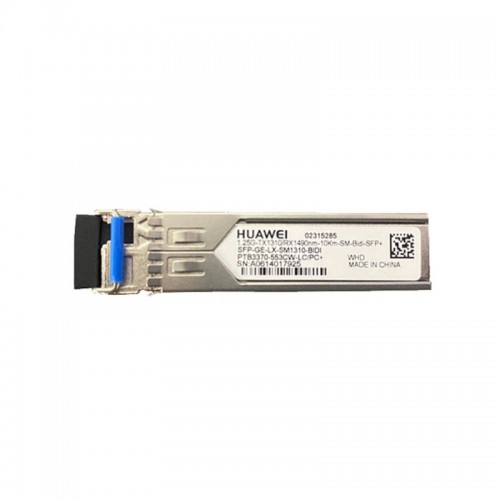

[02315285] Huawei SFP-GE-LX-SM1310-BIDI Optical Transeiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)

Basic Information

Module name: SFP-GE-LX-SM1310-BIDI
Part Number: 02315285
Model: SFP-GE-LX-SM1310-BIDI
Form factor: eSFP
Application standard: 1000BASE-BX10
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 1 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics

Center wavelength [nm]:
1490 nm (RX)
1310 nm (TX)
Maximum Tx optical power [dBm]: -3.0 dBm
Minimum Tx optical power [dBm]: -9.0 dBm
Minimum extinction ratio [dB]: 6 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -19.5 dBm
Overload power [dBm]: -3.0 dBm
NOTE:

This module supports the single-fiber bidirectional function.
Single-fiber bidirectional (BIDI) optical modules must be used in pairs. For example, SFP-GE-LX-SM1310-BIDI must be used with SFP-GE-LX-SM1490-BIDI.
