HUAWEI [02315203] Huawei SFP-FE-LX-SM1310-BIDI Optical Transceiver, eSFP, 100M/155M, Single-mode Module (TX1310nm/RX1550nm, 15km, LC) 02315203.. Product #: 02315203 based on 0 reviews

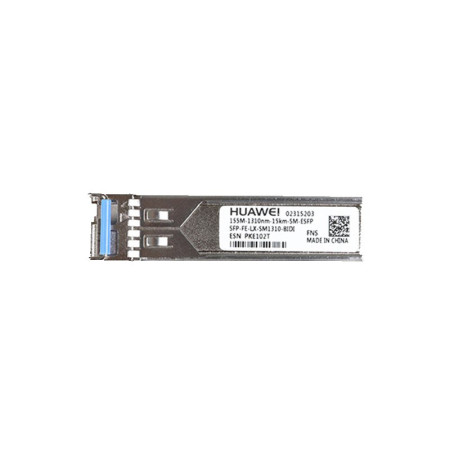

[02315203] Huawei SFP-FE-LX-SM1310-BIDI Optical Transceiver, eSFP, 100M/155M, Single-mode Module (TX1310nm/RX1550nm, 15km, LC)

MANUFACTURER: HUAWEI
P/N (รหัสสินค้า): 02315203

รับประกันสินค้า 5 ปี:

สินค้ารับประกัน 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Basic Information

Module name: SFP-FE-LX-SM1310-BIDI
Part Number: 02315203
Model: SFP-FE-LX-SM1310-BIDI
Form factor: eSFP
Application standard: 100BASE-BX
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Mbit/s
Target transmission distance [km]: Single-mode fiber: 15 km
Transmitter Optical Characteristics

Center wavelength [nm]
1550 nm (RX)
1310 nm (TX)
Maximum Tx optical power [dBm]: -8.0 dBm
Minimum Tx optical power [dBm]: -15.0 dBm
Minimum extinction ratio [dB]: 8.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -32.0 dBm
Overload power [dBm]: -8.0 dBm



NOTE

This module supports the single-fiber bidirectional function.
BIDI optical modules must be used in pairs. For example, SFP-FE-LX-SM1310-BIDI must be used with SFP-FE-LX-SM1550-BIDI.
