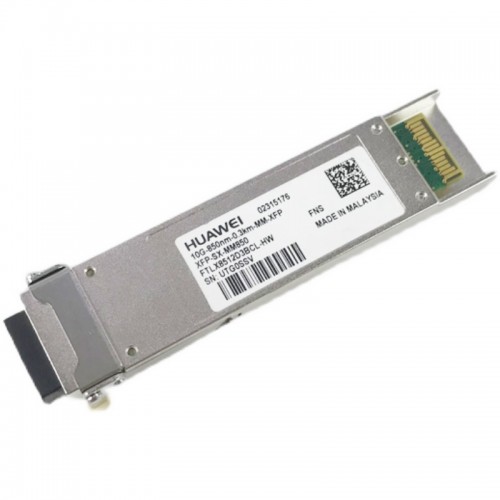

[02315176] Huawei XFP-SX-MM850 Optical Transceiver, XFP, 10G, Multi-mode Module (850nm, 0.3km, LC)

Basic Information

Module name: XFP-SX-MM850
Part Number: 02315176
Model: XFP-SX-MM850
Form factor: XFP
Application standard: 10GBASE-SR
Connector type: LC
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]:
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
Multimode fiber (OM1): 0.033 km
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
Multimode fiber (OM2): 0.082 km
Multimode fiber (OM3): 0.3 km
Multimode fiber (OM4): 0.4 km
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power [dBm]: -1.3 dBm
Minimum Tx optical power [dBm]: -7.3 dBm
Minimum extinction ratio [dB]: 3 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -7.5 dBm
Overload power [dBm]: -1 dBm
