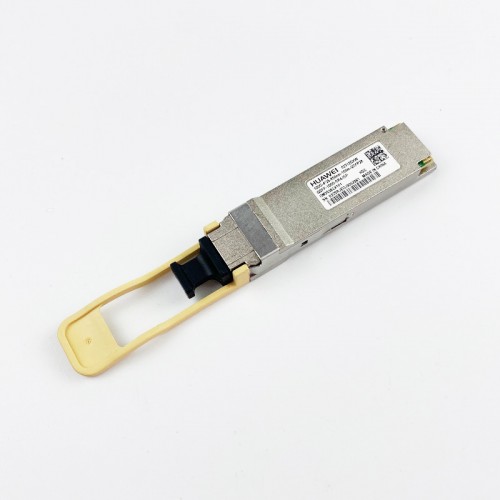

[02312DXW] Huawei QSFP-100G-SR4-ISP 100GBase-SR4, Optical Transceiver, QSFP28, 100G, Multi-mode Module (850nm, 0.1km, MPO, ISP)

Basic Information

Module name: QSFP-100G-SR4-ISP
Part Number: 02312DXW
Model: QSFP-100G-SR4-ISP
Form factor: QSFP28
Application standard/Type: 100GBASE-SR4
Connector type: MPO
Optical fiber type: MMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100Gbit/s
Target transmission distance [km]: 8-strand or 12-strand, type B, female connector
Multimode (OM3) optical fiber (diameter: 50 μm): 70 m
Multimode (OM4) optical fiber (diameter: 50 μm): 100 m
Modal bandwidth [MHz*km]:
Multimode (OM3) optical fiber: 2000 MHz*km
Multimode (OM4) optical fiber: 4700 MHz*km
Transmitter Optical Characteristics

Center wavelength [nm] 850 nm
Maximum Tx optical power (AVG) [dBm]: 2.4 dBm
Minimum Tx optical power (AVG) [dBm]: -8.4 dBm
Minimum extinction ratio [dBm]: 2 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -8.5 dBm
Overload power (AVG) [dBm]: 2.4 dBm
