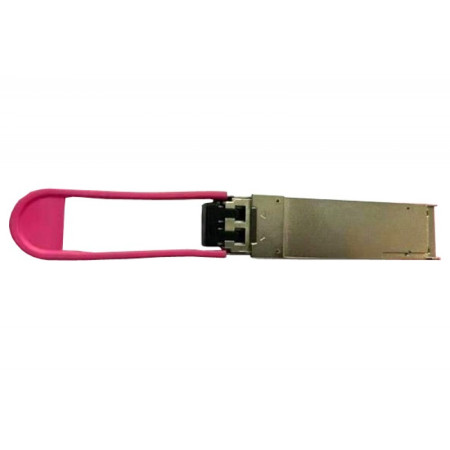

[02311YXR] Huawei QSFP-100G-ER4-Lite 100GBase-ER4-Lite, Optical Transceiver, QSFP28, 100G, Single-mode Module (1310nm, 30km-FEC OFF, 40km-FEC ON, LC)

Basic Information

Module name: QSFP-100G-ER4-Lite
Part Number: 02311YXR
Model: QSFP-100G-ER4-Lite
Form factor: QSFP28
Application standard: Non-standard and compatible with the 100GBASE-ER4
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652):
Disables the RS-FEC function: 30 km
Enables the RS-FEC function: 40 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1295 nm, 1300 nm, 1304 nm, 1309 nm
Maximum Tx optical power [dBm]: 2.9 dBm
Minimum Tx optical power [dBm]: -2.5 dBm
Minimum extinction ratio [dB]: 8 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -18.4 dBm
Overload power [dBm]: -3.5 dBm
