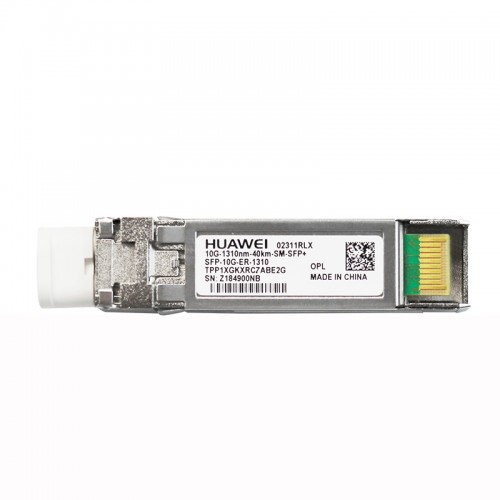

[02311RLX] Huawei SFP-10G-ER-1310 Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC)

Basic Information

Module name: SFP-10G-ER-1310
Part Number: 02311RLX
Model: SFP-10G-ER-1310
Form factor: SFP+
Application standard: Non-standard and compatible with the 10Gbase-ER
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]: Single-mode fiber: 40 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 4.0 dBm
Minimum Tx optical power [dBm]: -2.0 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -20 dBm
Overload power [dBm]: -7.0 dBm
NOTE:

If the SFP-10G-ER-1310 is connected to a 10Gbase-ER standard optical module (1550nm, 10GE, 40km), the maximum transmission distance is only 20km due to different specifications such as wavelength and receiving sensitivity.
This module can only be used on a switch running V200R010C00 or a later version.
