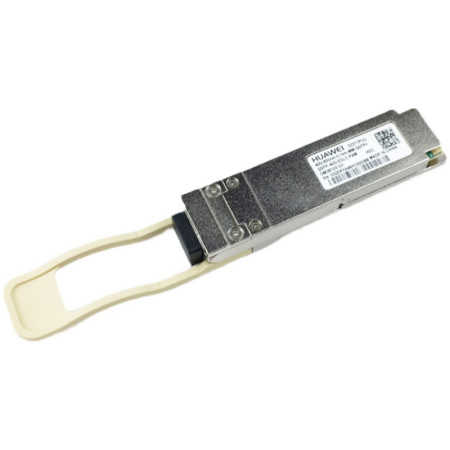

[02311PUU] Huawei QSFP-40G-SDLC-PAM 40GBase-SDLC Optical Transceiver, QSFP+, 40G, Multi-mode Module (850nm, PAM4, 0.1km-OM3, 0.15km-OM4, LC)

Basic Information

Module name: QSFP-40G-SDLC-PAM
Part Number: 02311PUU
Model: QSFP-40G-SDLC-PAM
Form factor: QSFP+
Application standard: 40GBASE-PAM4 (non-standard)
Connector type: LC
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]:
Multimode fiber (OM3): 100 m
Multimode fiber (OM4): 150 m
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power [dBm]: 2.4 dBm
Minimum Tx optical power [dBm]: -2.5 dBm
Minimum extinction ratio [dB]: 3 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -8.0 dBm
Overload power [dBm]: 2.4 dBm
