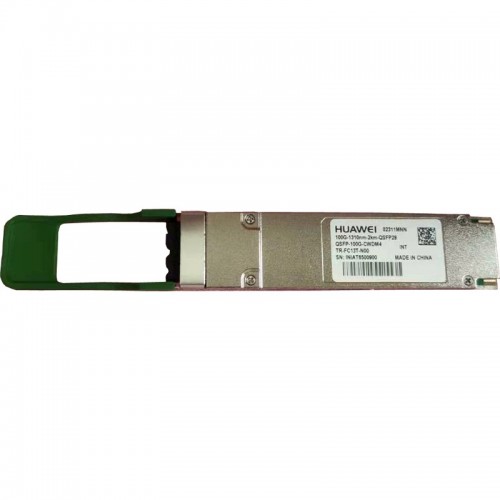

[02311MNN] Huawei QSFP-100G-CWDM4 100GBase-CWDM4, Optical Transceiver, QSFP28, 100G, Single-mode Module (1310nm, 2km, LC)

Basic Information

Module name: QSFP-100G-CWDM4
Part Number: 02311MNN
Model: QSFP-100G-CWDM4
Form factor: QSFP28
Application standard/Type: 100GBASE-CWDM4
Connector type: LC
Optical fiber type: SMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 2 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1271 nm, 1291 nm, 1311 nm, 1331 nm
Maximum Tx optical power (AVG) [dBm]: 2.5 dBm
Minimum Tx optical power (AVG) [dBm]: -6.5 dBm
Minimum extinction ratio [dBm]: 3.5 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -9.8 dBm
Overload power (AVG) [dBm]: 2.5 dBm
