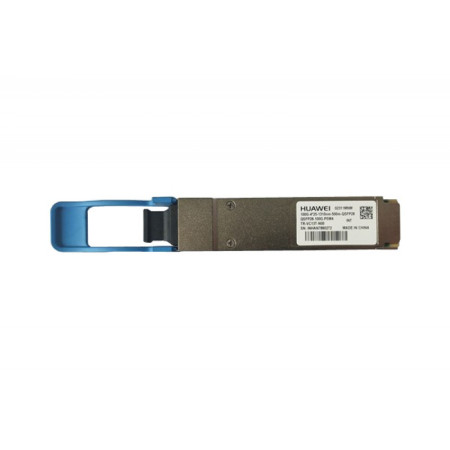

[02311MNM] Huawei QSFP28-100G-PSM4 100GBase-PSM4, Optical Transceiver, QSFP28, 100G, Single-mode Module (1310nm, 0.5km, MPO)

Basic Information

Module name: QSFP28-100G-PSM4
Part Number: 02311MNM
Model: QSFP28-100G-PSM4
Form factor: QSFP28
Application standard: 100GBASE-PSM4 (non-standard)
Connector type: MPO/APC (8-strand or 12-strand, type B, female connector)
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652): 500 m
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 2 dBm
Minimum Tx optical power [dBm]: -9.4 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -11.35 dBm
Overload power [dBm]: 2.2 dBm
