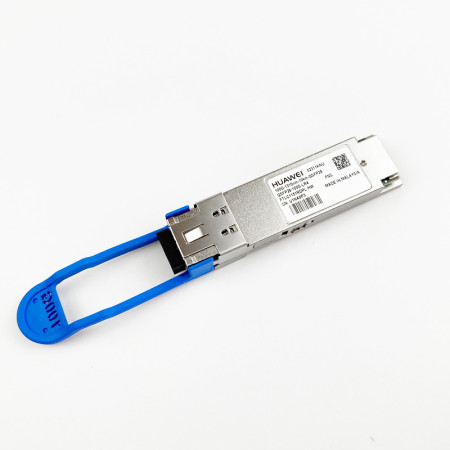

[02311KNU] Huawei QSFP28-100G-LR4 100GBase-LR4, Optical Transceiver, QSFP28, 100G, Single-mode Module (1310nm, 10km, LC)

Basic Information

Module name: QSFP28-100G-LR4
Part Number: 02311KNU
Model: QSFP28-100G-LR4
Form factor: QSFP28
Application standard/Type: 100GBASE-LR4
Connector type: LC
Optical fiber type: SMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1295 nm, 1300 nm, 1304 nm, 1309 nm
Maximum Tx optical power (AVG) [dBm]: 4.5 dBm
Minimum Tx optical power (AVG) [dBm]: -4.3 dBm
Minimum extinction ratio [dBm]: 4 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -8.6 dBm
Overload power (AVG) [dBm]: 4.5 dBm
