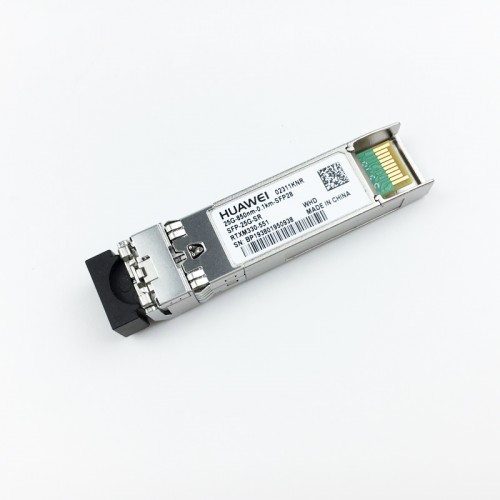

[02311KNR] Huawei SFP-25G-SR 25GBase-SR Optical Transceiver, SFP28, 25G, Multi-mode Module (850nm, 0.1km, LC)

Basic Information

Module name: SFP-25G-SR
Part Number: 02311KNR
Model: SFP-25G-SR
Form factor: SFP28
Application standard: 25GBASE-SR
Connector type: LC
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 25 Gbit/s
Target transmission distance [km]:
Multimode fiber (OM3):
Disables the RS-FEC function: 0.03 km
Enables the RS-FEC function: 0.07 km
Multimode fiber (OM4):
Disables the RS-FEC function: 0.04 km
Enables the RS-FEC function: 0.1 km
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power [dBm]: 2.4 dBm
Minimum Tx optical power [dBm]: -8.4 dBm
Minimum extinction ratio [dB]: 2 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -10.3 dBm
Overload power [dBm]: 2.4 dBm
