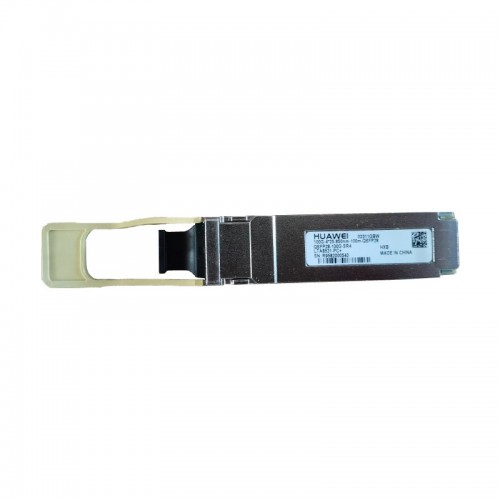

[02311GBW] Huawei QSFP28-100G-SR4 100GBase-SR4, Optical Transceiver, QSFP28, 100G, Multi-mode Module (850nm, 0.1km, MPO)

Basic Information

Module name: QSFP28-100G-SR4
Part Number: 02311GBW
Model: QSFP28-100G-SR4
Form factor: QSFP28
Application standard: 100GBASE-SR4
Connector type: MPO/PC (8-strand or 12-strand, type B, female connector)
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Gbit/s
Target transmission distance [km]
Multimode fiber (OM3): 70 m
Multimode fiber (OM4): 100 m
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power [dBm]: 2.4 dBm
Minimum Tx optical power [dBm]: -8.4 dBm
Minimum extinction ratio [dB]: 2 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -10.3 dBm
Overload power [dBm]: 2.4 dBm
