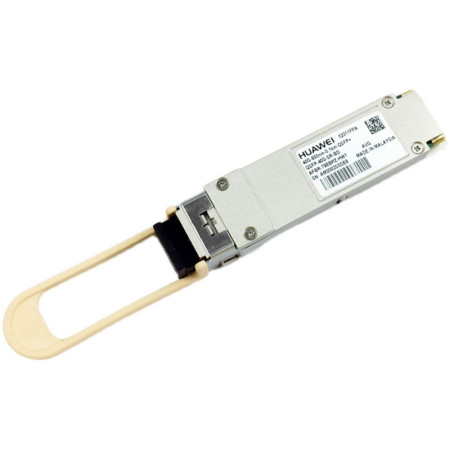

[02311FPA] Huawei QSFP-40G-SR-BD 40GBase-BD Optical Transceiver, QSFP+, 40G, Multi-mode Module (850nm, 0.1km, LC)

Basic Information

Module name: QSFP-40G-SR-BD
Part Number: 02311FPA
Model: QSFP-40G-SR-BD
Form factor: QSFP+
Application standard: 40GBASE-BIDI (non-standard)
Connector type: LC
Optical fiber type: MMF
Working case temperature [°C(°F)]: 10°C to 70°C (50°F to 158°F)
NOTICE: Temporary interruption or packet loss may occur on ports of the switch if the operating temperature is below 10°C (50°F).
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]:
Multimode fiber (OM3): 0.1 km
Multimode fiber (OM4): 0.15 km
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm, 900 nm
Maximum Tx optical power [dBm]: 5 dBm
Minimum Tx optical power [dBm]: -4 dBm
Minimum extinction ratio [dB]: 4.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -4.5 dBm
Overload power [dBm]: 5 dBm
