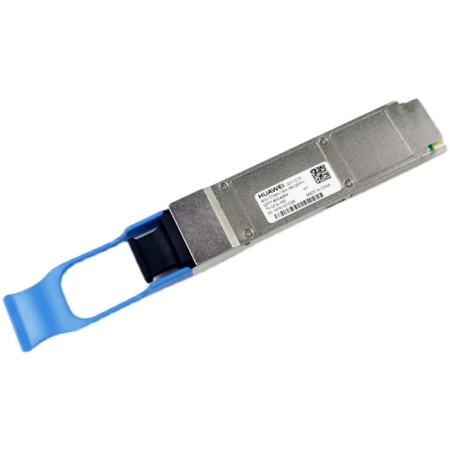

[02311DTR] Huawei QSFP-40G-eSM4 40GBase-eSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1310nm, 10km, MPO)

Basic Information

Module name: QSFP-40G-eSM4
Part Number: 02311DTR
Model: QSFP-40G-eSM4
Form factor: QSFP+
Application standard: 40GBASE-eSM4 (non-standard)
Connector type: MPO/APC (8-strand or 12-strand, type B, female connector)
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -8.2 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -12.6 dBm
Overload power [dBm]: 0.5 dBm
