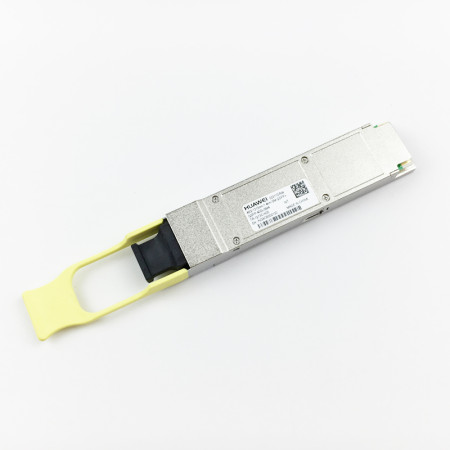

[02311DRW] Huawei QSFP-40G-iSM4 40GBASE-iSM4 Optical Transceiver, QSFP+, 40GE, Single-mode Module (1310nm, 1.4km, MPO)

Basic Information

Module name: QSFP-40G-iSM4
Part Number: 02311DRW
Model: QSFP-40G-iSM4
Form factor: QSFP+
Application standard: 40GBASE-iSM4 (non-standard)
Connector type: MPO/APC (8-strand or 12-strand, type B, female connector)
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]: Single-mode fiber: 1.4 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -8.2 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -11.5 dBm
Overload power [dBm]: 0.5 dBm
