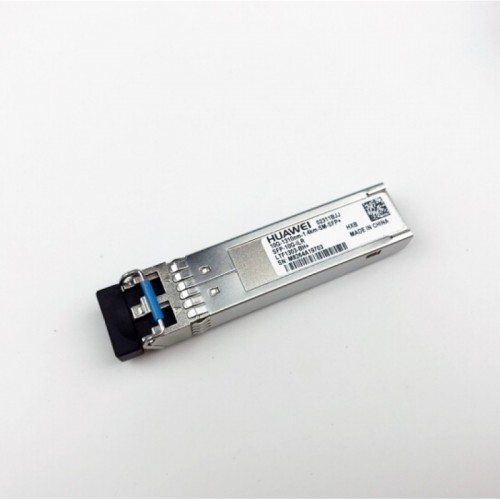

[02311BJJ] Huawei SFP-10G-iLR Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC)

Basic Information

Module name: SFP-10G-iLR
Part Number: 02311BJJ
Model: SFP-10G-iLR
Form factor: SFP+
Application standard/Type: 10GBASE-iLR
Connector type: LC
Optical fiber type: SMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: -40°C to +85°C (-40°F to +185°F)
Transmission rate [bit/s]: 10Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 1.4 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power (AVG) [dBm]: 0.5 dBm
Minimum Tx optical power (AVG) [dBm]: -8.2 dBm
Minimum extinction ratio [dBm]: 3.5 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -14.4 dBm
Overload power (AVG) [dBm]: 0.5 dBm
