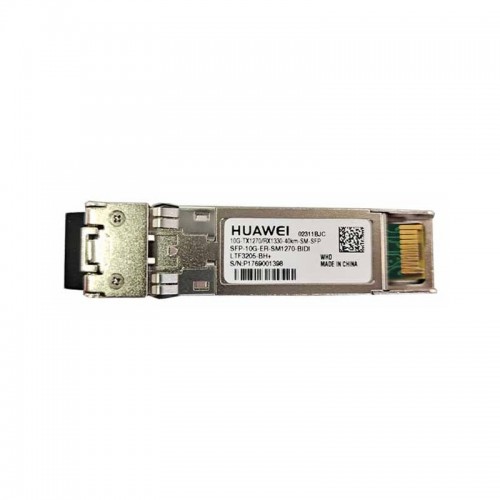

[02311BJC] Huawei SFP-10G-ER-SM1270-BIDI Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX1270nm/RX1330nm, 40km, LC)

Basic Information

Module name: SFP-10G-ER-SM1270-BIDI
Part Number: 02311BJC
Model: SFP-10G-ER-SM1270-BIDI
Form factor: SFP+
Application standard/Type: 10GBASE-BDER
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 40 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1330(RX)1270(TX)
Maximum Tx optical power (AVG) [dBm]: 5 dBm
Minimum Tx optical power (AVG) [dBm]: 0 dBm
Minimum extinction ratio [dBm]: 3.5 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -18 dBm
Overload power (AVG) [dBm]: -9 dBm
