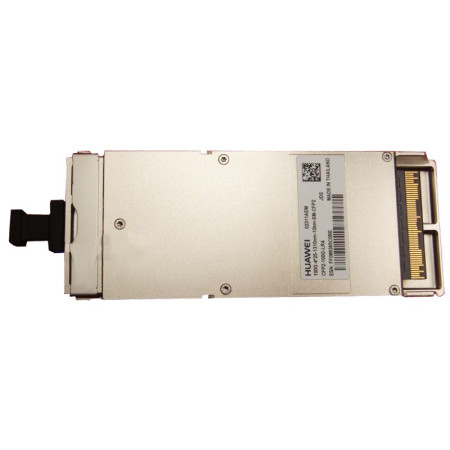

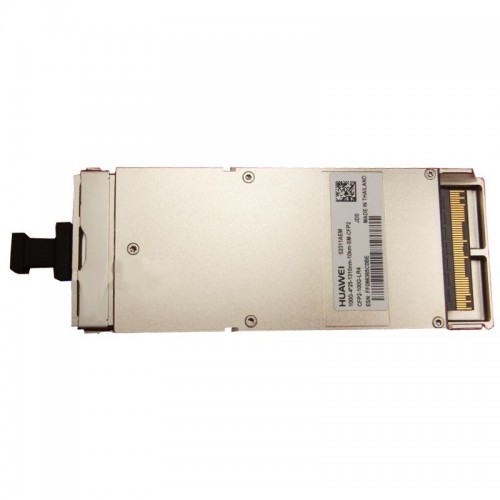

[02311AEM] Huawei CFP2-100G-LR4 High Speed Transceiver, CFP2, 100G, Single-mode Module (1310nm band, 4*25G, 10km, stright LC)

Specifications

Part number: 02311AEM
Module name: CFP2-100G-LR4
Version support: Supported in V100R005C00 and later versions
Transceiver form factor: CFP2
Transmission speed: 100GE
Center wavelength (nm): 1295, 1300, 1304, 1309
Standards compliance: 100GBASE-LR4
Connector type: LC
Type of the end face of the fiber ceramic ferrule: PC or UPC
Applicable cable and maximum transmission distance: Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Modal bandwidth: -
Transmit power (dBm): -4.3 to +4.5
Maximum receiver sensitivity (dBm): -10.6
Overload power (dBm): 4.5
Extinction ratio (dB): ≥ 4
Operating temperature: 0°C to 70°C
