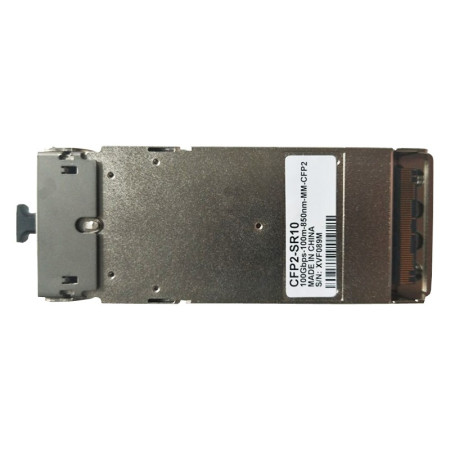

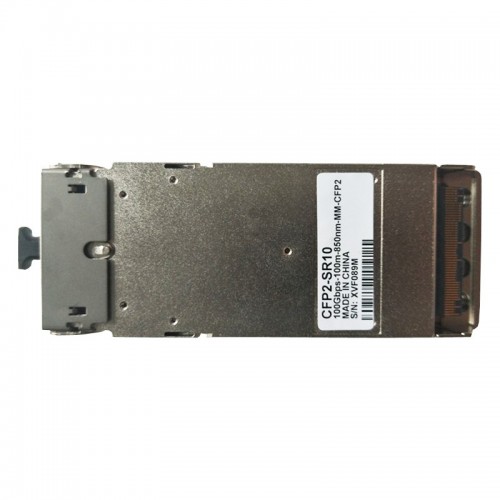

[02311AEJ] Huawei CFP2-100G-SR10 High Speed Transceiver, CFP2, 100G, Multi-mode Module (850nm, 10*10G, 0.1km, MPO)

Specifications

Part number: 02311AEJ
Module name: CFP2-100G-SR10
Version support: Supported in V100R005C00 and later versions
Transceiver form factor: CFP2
Transmission speed: 100GE
Center wavelength (nm): 850
Standards compliance: 100GBASE-SR10
Connector type: MPO
Type of the end face of the fiber ceramic ferrule: PC or UPC
Applicable cable and maximum transmission distance: 24-strand, type B, female connector
Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 150 m
Modal bandwidth:
Multimode fiber (OM3): 2000 MHz*km
Multimode fiber (OM4): 4700 MHz*km
Transmit power (dBm): -7.6 to -1
Maximum receiver sensitivity (dBm): -9.5
Overload power (dBm): -1
Extinction ratio (dB): ≥ 3
Operating temperature: 0°C to 70°C
