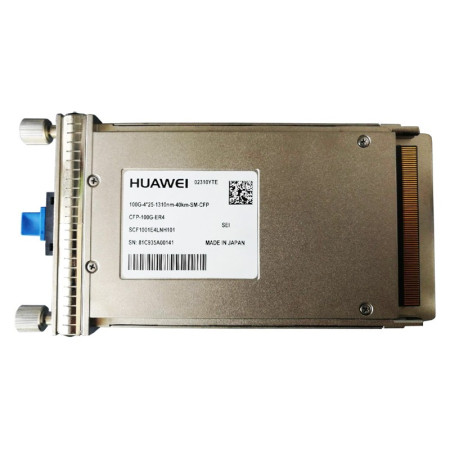

[02310YTE] Huawei CFP-100G-ER4 High Speed Transceiver, CFP, 100G, Single-mode Module (1310nm band, 4*25G, 40km, stright LC)

Basic Information

Module name: CFP-100G-ER4
Part Number: 02310YTE
Model: CFP-100G-ER4
Form factor: CFP
Application standard: 100GBASE-ER4
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Gbit/s
Target transmission distance [km]: Single-mode fiber: 40 km

Transmitter Optical Characteristics

Center wavelength [nm]: 1295 nm, 1300 nm, 1304 nm, 1309 nm
Maximum Tx optical power [dBm]: 2.9 dBm
Minimum Tx optical power [dBm]: -2.9 dBm
Minimum extinction ratio [dB]: 8 dB

Receiver Optical Characteristics

Rx sensitivity [dBm]: -21.4 dBm
Overload power [dBm]: 4.5 dBm
