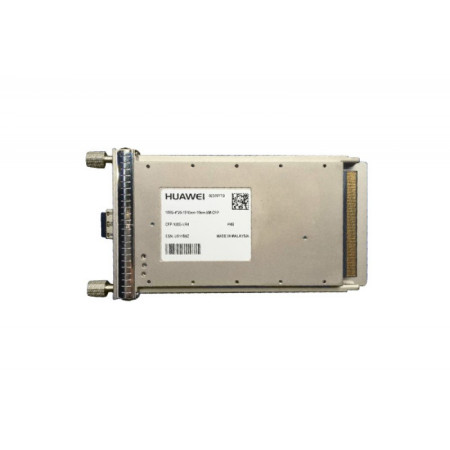

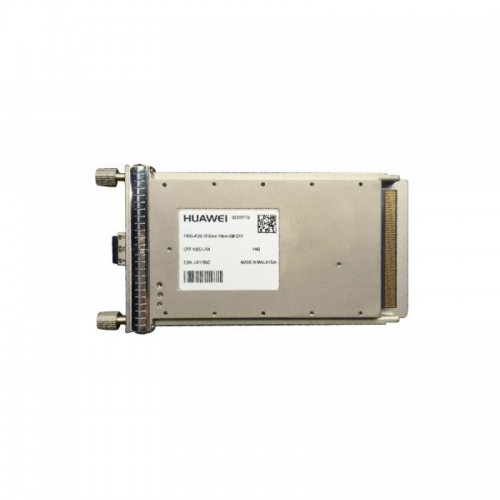

[02310YTD] Huawei CFP-100G-LR4 High Speed Transceiver, CFP, 100G, Single-mode Module (1310nm band, 4*25G, 10km, stright LC)

Basic Information

Module name: CFP-100G-LR4
Part Number: 02310YTD
Model: CFP-100G-LR4
Form factor: CFP
Application standard: 100GBASE-LR4
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 100 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1295 nm, 1300 nm, 1304 nm, 1309 nm
Maximum Tx optical power [dBm]: 4.5 dBm
Minimum Tx optical power [dBm]: -4.3 dBm
Minimum extinction ratio [dB]: 4 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -8.6 dBm
Overload power [dBm]: 4.5 dBm
