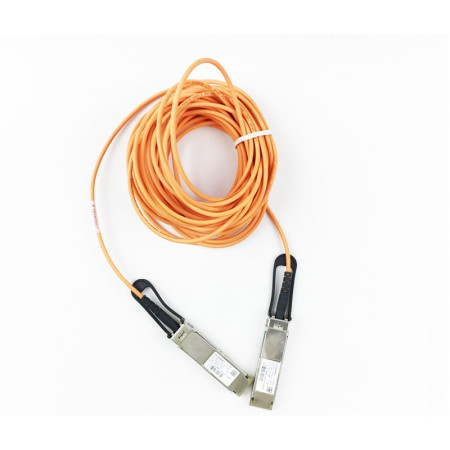

[02310SSH] Huawei QSFP-H40G-AOC10M Active Optical Cable, QSFP+, 40G, (850nm, 10m, AOC)

Specifications

Part number: 02310SSH
Module name: QSFP-H40G-AOC10M
Version support: V100R005C00 and later versions
Connector Type: QSFP+ connectors at both ends
Length: 10 m
Operating Wavelength: 850 nm
Operating Temperature: 0°C to 70°C

An active optical cable (AOC) is an active optical fiber with optical modules at both ends, and therefore is easy to use.

02310SSH QSFP+ to QSFP+ AOC cable usage scenarios and connections

Scenario 1: used for 40GE optical port connection or stacking between CloudEngine 8800, 7800, 6800, and 5800 series switches.
Scenarios 2: used for 40GE connection between CloudEngine 12800 and 12800E series switches and CloudEngine 8800, 7800, 6800, and 5800 series switches.
Both ends connect to a 40GE optical port.
