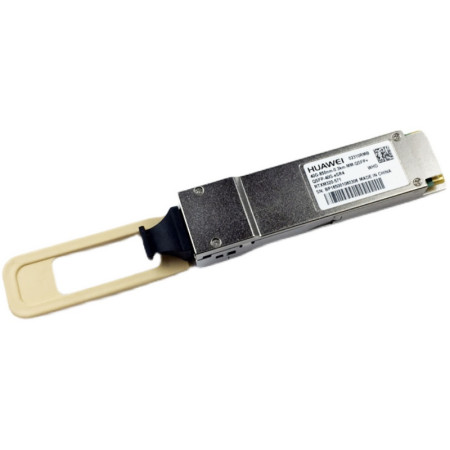

[02310RMB] Huawei QSFP-40G-eSR4 40GBase-eSR4 Optical Transceiver, QSFP+, 40G, Multi-mode Module (850nm, 0.3km, MPO)

Basic Information

Module name: QSFP-40G-eSR4
Part Number: 02310RMB
Model: QSFP-40G-eSR4
Form factor: QSFP+
Application standard: 40GBASE-eSR4 (non-standard)
Connector type: MPO/PC (8-strand or 12-strand, type B, female connector)
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]:
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
Multimode fiber (OM1): 0.033 km
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
Multimode fiber (OM2): 0.082 km
Multimode fiber (OM3): 0.3 km
Multimode fiber (OM4): 0.4 km
Transmitter Optical Characteristics

Center wavelength [nm]: 850 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -7.6 dBm
Minimum extinction ratio [dB]: 3.0 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -5.4 dBm
Overload power [dBm]: 2.4 dBm
