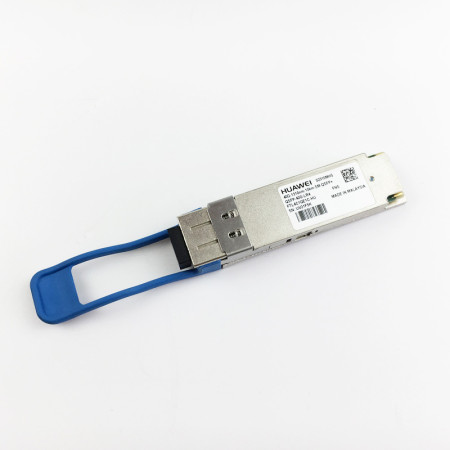

[02310MHS] Huawei QSFP-40G-LR4 40GBase-LR4 Optical Transceiver, QSFP+, 40GE, Single-mode Module (1310nm, 10km, LC)

Basic Information

Module name: QSFP-40G-LR4
Part Number: 02310MHS
Model: QSFP-40G-LR4
Form factor: QSFP+
Application standard: 40GBASE-LR4
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1271 nm, 1291 nm, 1311 nm, 1331 nm
Maximum Tx optical power [dBm]: 2.3 dBm
Minimum Tx optical power [dBm]: -7.0 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -11.5 dBm
Overload power [dBm]: 3.3 dBm
