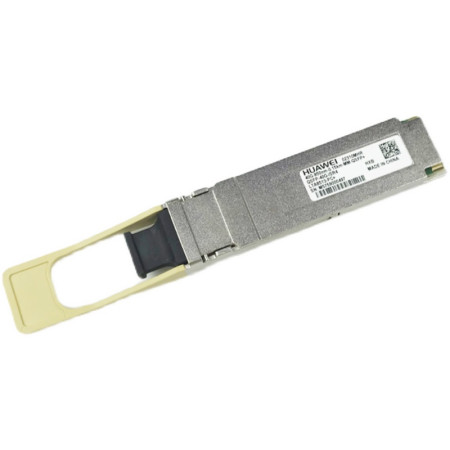

[02310MHR] Huawei QSFP-40G-iSR4 40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode Module (850nm, 0.15km, MPO)

Basic Information

Module name: QSFP-40G-iSR4
Part Number: 02310MHR
Model: QSFP-40G-iSR4
Form factor: QSFP+
Application standard:
40GBASE-SR4
40GBASE-iSR4 (non-standard)
Connector type: MPO/PC (8-strand or 12-strand, type B, female connector)
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]:
Multimode fiber (OM3): 0.1 km
Multimode fiber (OM4): 0.15 km
Transmitter Optical Characteristics

Center wavelength [nm] 850 nm
Maximum Tx optical power [dBm] 0.5 dBm
Minimum Tx optical power [dBm] -7.6 dBm
Minimum extinction ratio [dB] 3.0 dB
Receiver Optical Characteristics

Rx sensitivity [dBm] -9.5 dBm
Overload power [dBm] 2.4 dBm
